Our company is a well established leading firm in the field of mesh gabions and related wire products. We supply constructive companies / contractors / distributors of many countries for bank building and rock netting project.We offer gabions mesh manufacturing from these wire materials:Hot-dipped galvanized;Electro galvanized;Hot-dipped galvanized then PVC coated.
Zinc Coated

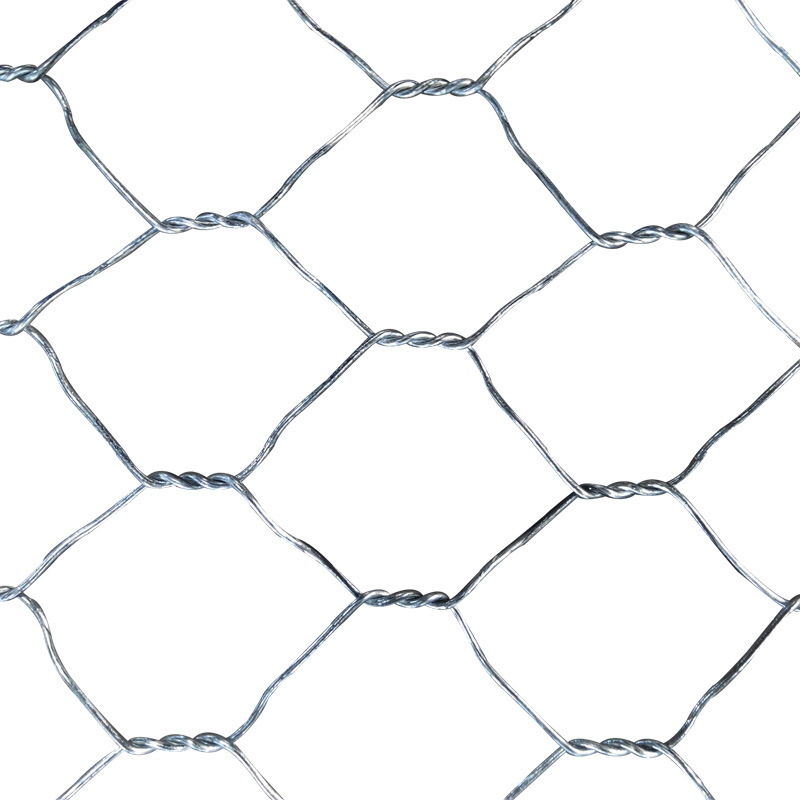

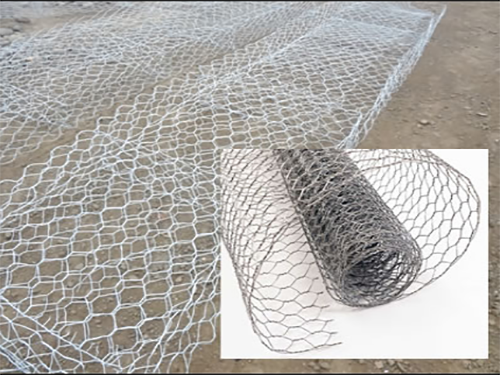

Gabion mesh rolls, 3mm wire diameter, 20m roll length; 8 x 10cm mesh size.

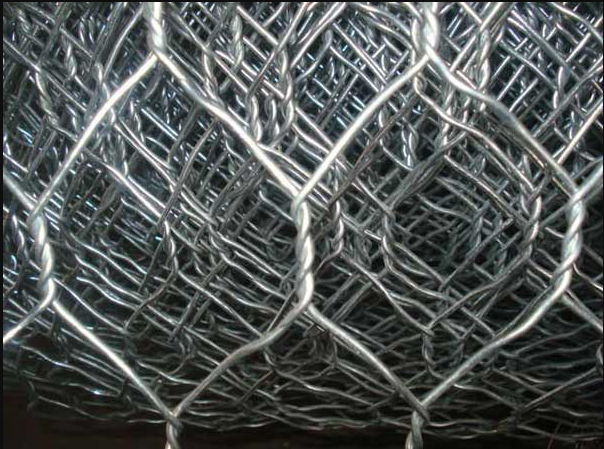

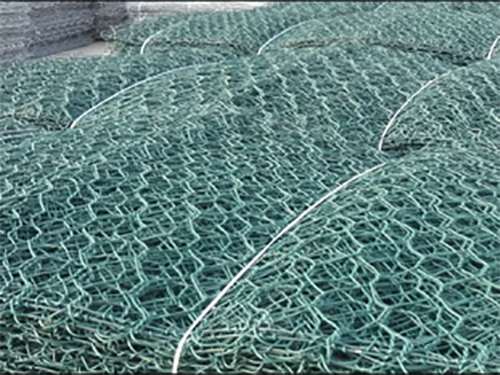

Galvanized pvc mesh rolls for box making, 6x8 mesh x 2.7mm
Urgent Order?
Hightop Gabion Mesh comes in a various of materials and types, We have a large stock for fast delivery. If you need a product quotation, Please fill in the form and we will contact you as soon as possible！

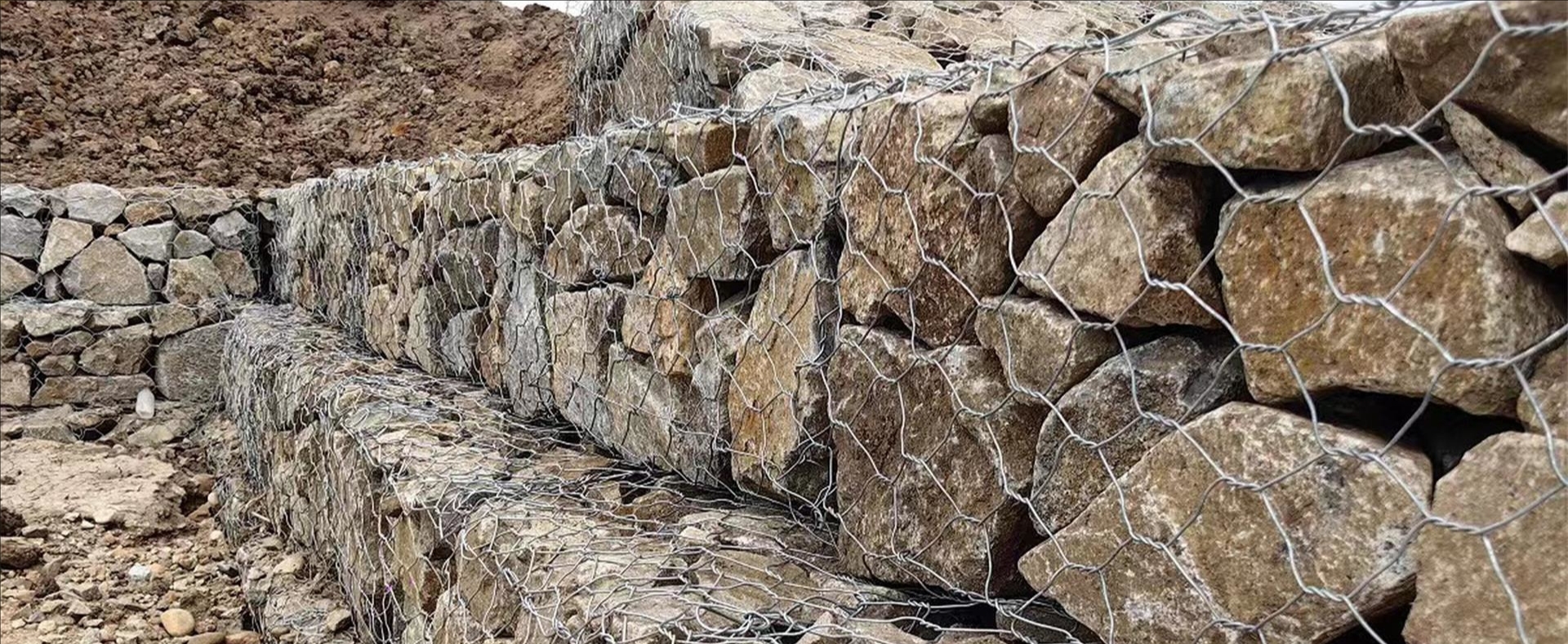

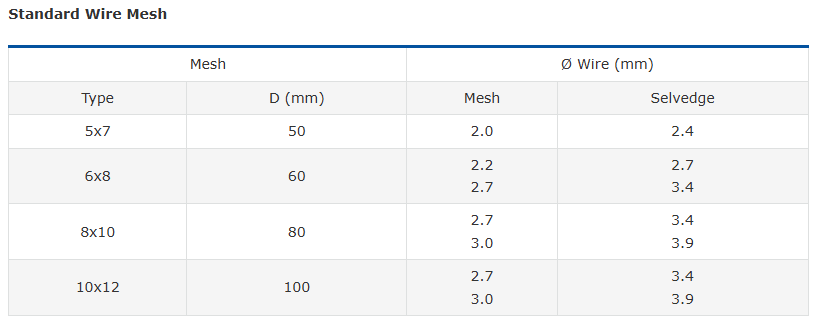

Gabion Mesh Galvanized for Retaining Wall and Rock Fall Protection System Wires for producing meet following standard: Tensile strength: Between 3 8 0 - 5 5 0 N/mm2 exceeding standard of EN10223-3. Wire Elongation: Min. 10%, meet EN10223-3. Zinc coating: Quantities of zinc shall meet the requirements of EN10244-2. Adhesion of Zinc coating to the wire: Meet EN 10223-3.

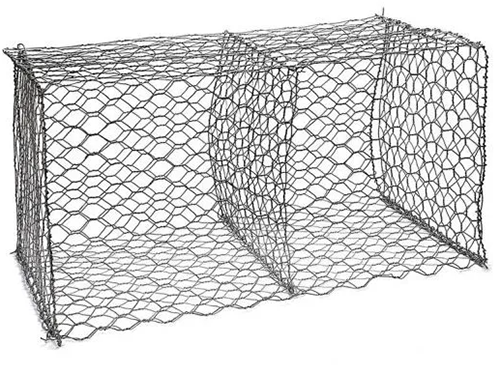

Gabion Box/Basket

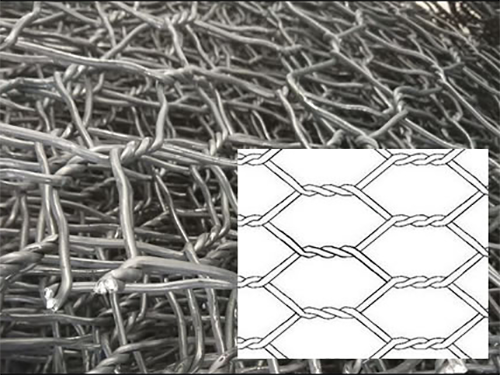

Fabricating Twist Woven Hex Wire Mesh into Gabions

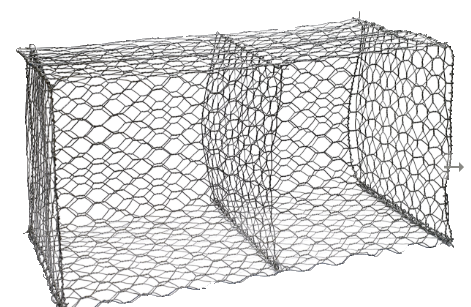

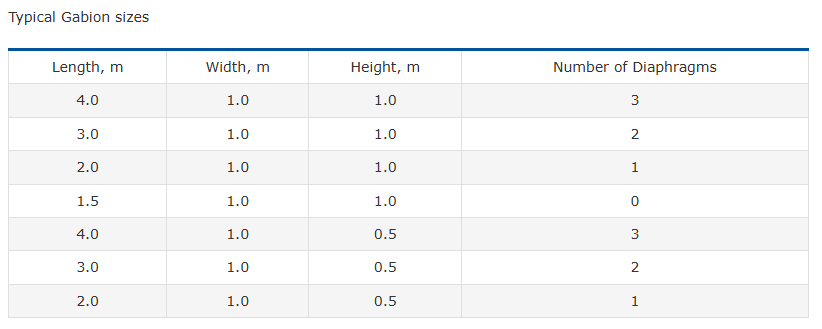

Gabions shall be manufactured with all components mechanically connected at the production facility. The front, base, back and lid of the gabions shall be woven into a single unit. The ends and diaphragm(s) shall be factory connected to the base. The lid may be a separate piece made of the same type mesh as the basket. All perimeter edges of the mesh forming the basket and top, or lid, shall be selvedge with wire having a larger diameter. Gabion is divided into cells by means of diaphragms positioned at approximately 1 m centres. The diaphragms shall be secured in position to the base so that no additional lacing is necessary at the jobsite.
Gabion Welded Box/Basket
Hightop Gabion Mesh Applications

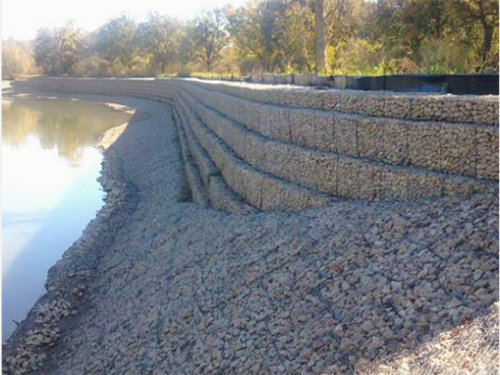

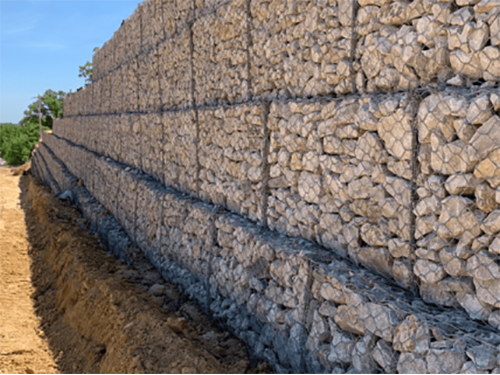

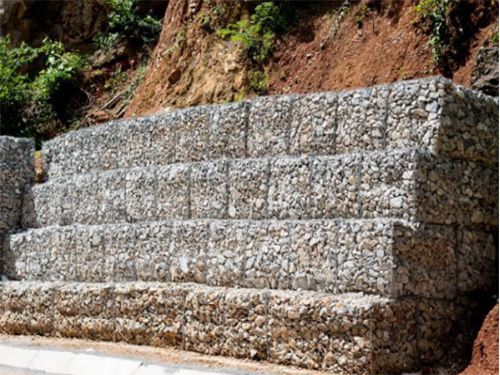

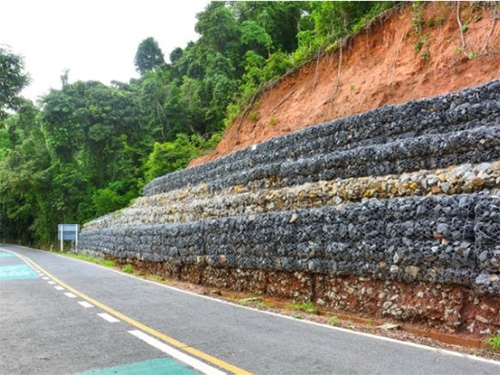

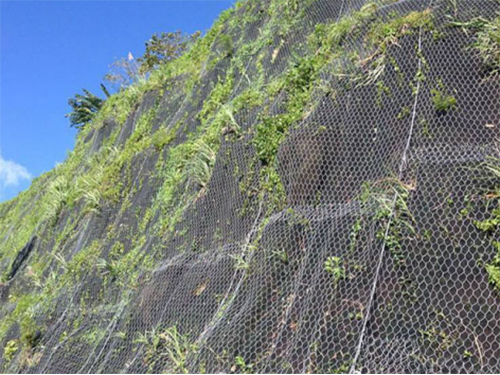

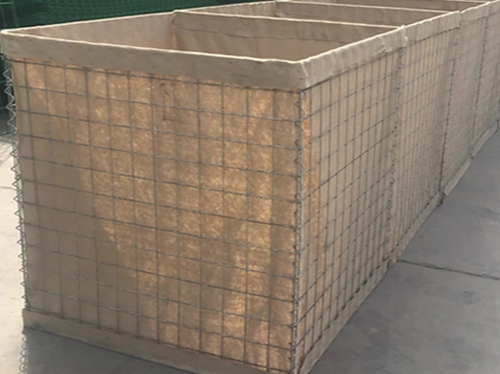

Gabion mesh versatility, durability and high security make it suitable for a wide range of applications such as Protection and decoration,Retaining wall,Rockfall net protection,Military gabion barrier,Bank stabilization,Slope protection, etc. Get a quote now!
Hebei Hightop is one of the most recognized expanded metal mesh supplier,with 20 years of production and distribution experience.
2、Our products are exported to more than 80 countries
Hightop Gabion mesh products are exported mainly to USA, EU, Japan, Southeast Asia and Latin America, etc.
3、ISO certified
Hightop Metal is IS0 9001:2015 certified company, and all of our products comply with ASTM E2016 standards.
4、More than 500 Projects
We work with companies in industries such as architecture, petroleum, manufacturing, Chemical lndustry, Medical And Pharmaceutical, print, energy and power generation, food industry, agriculture, automotive, water treatment.
